To be used with 85-92 LT250R or 87-90 LT500R Flywheel
Higher-Performance than OEM CDI (all years)
Orange Box CDI Kit Includes:
Stator Powered CDI with:

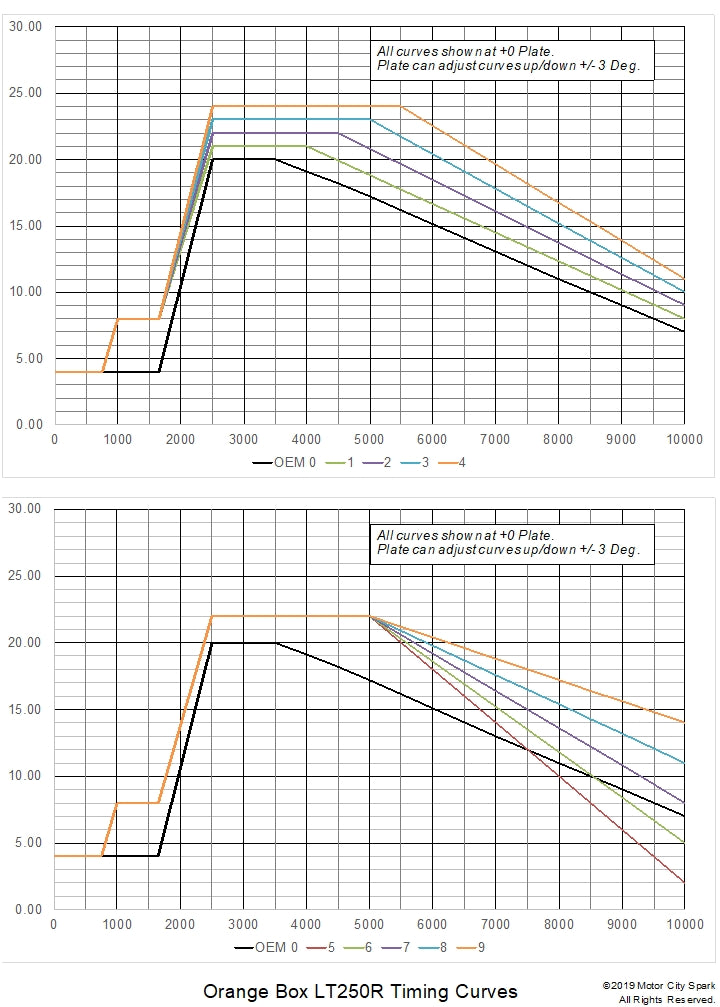

10 Pre-Programmed Spark Curves
10,000 RPM Rev Limiter
Improved Spark Energy for Starting and Running

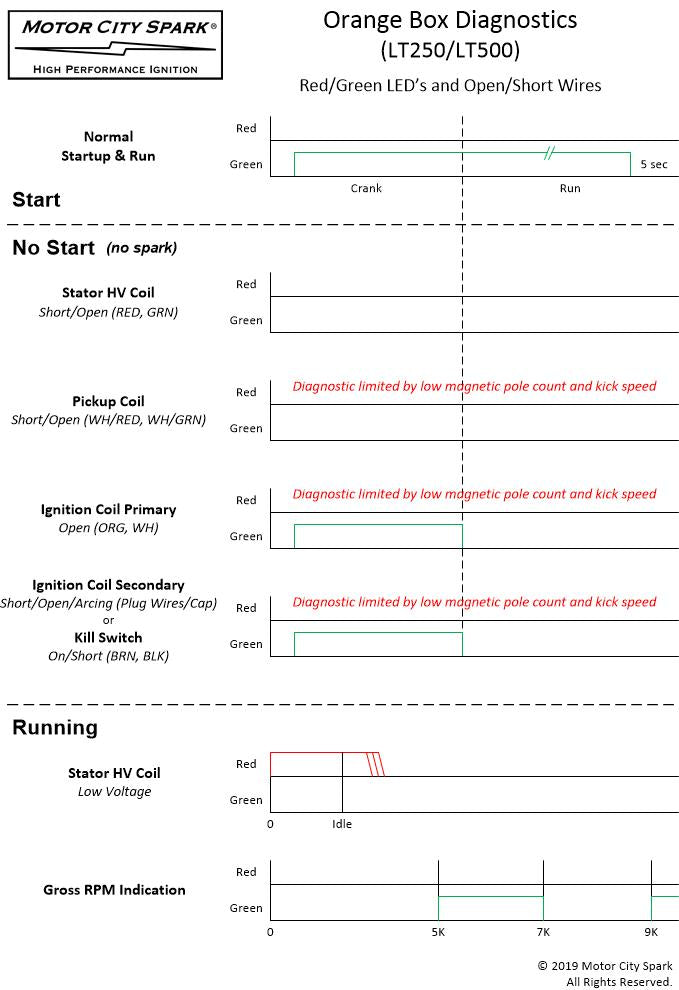

No Start Diagnostics
New MCS Stator designed specifically for Orange Box
OEM and Aftermarket stators will NOT work
Lights connect and work as normal
4-pin Banshee CDI connector for easy installation

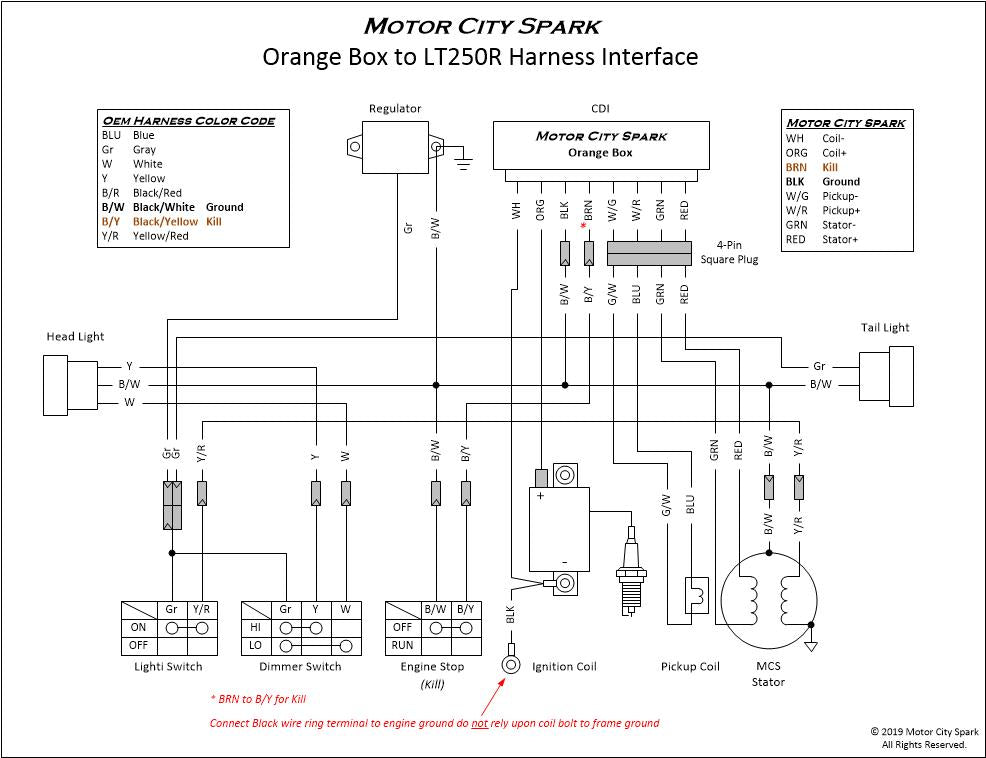

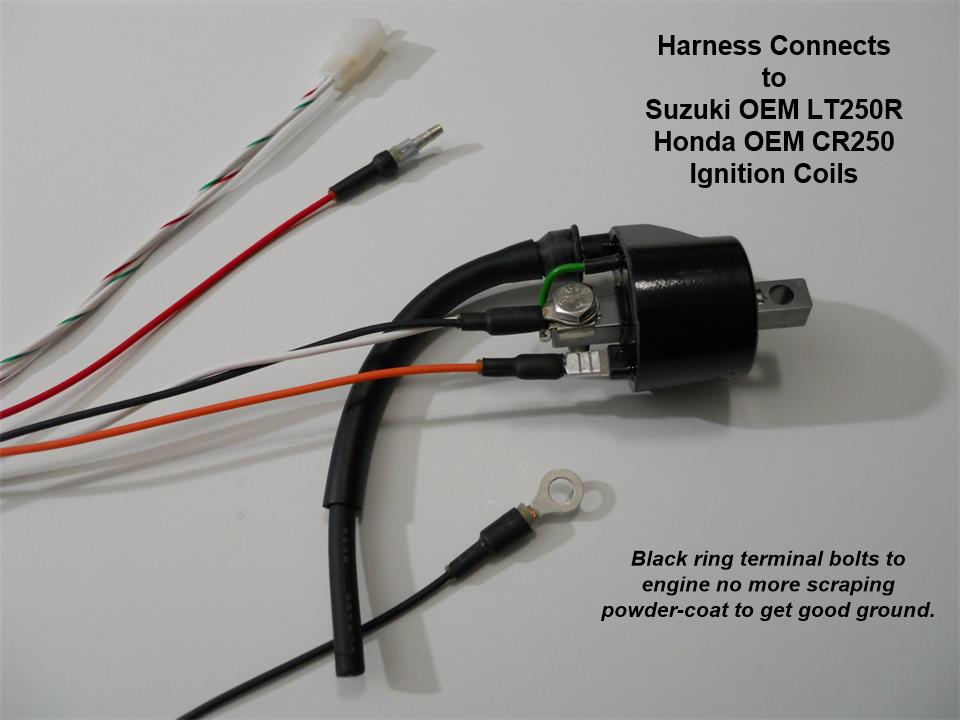

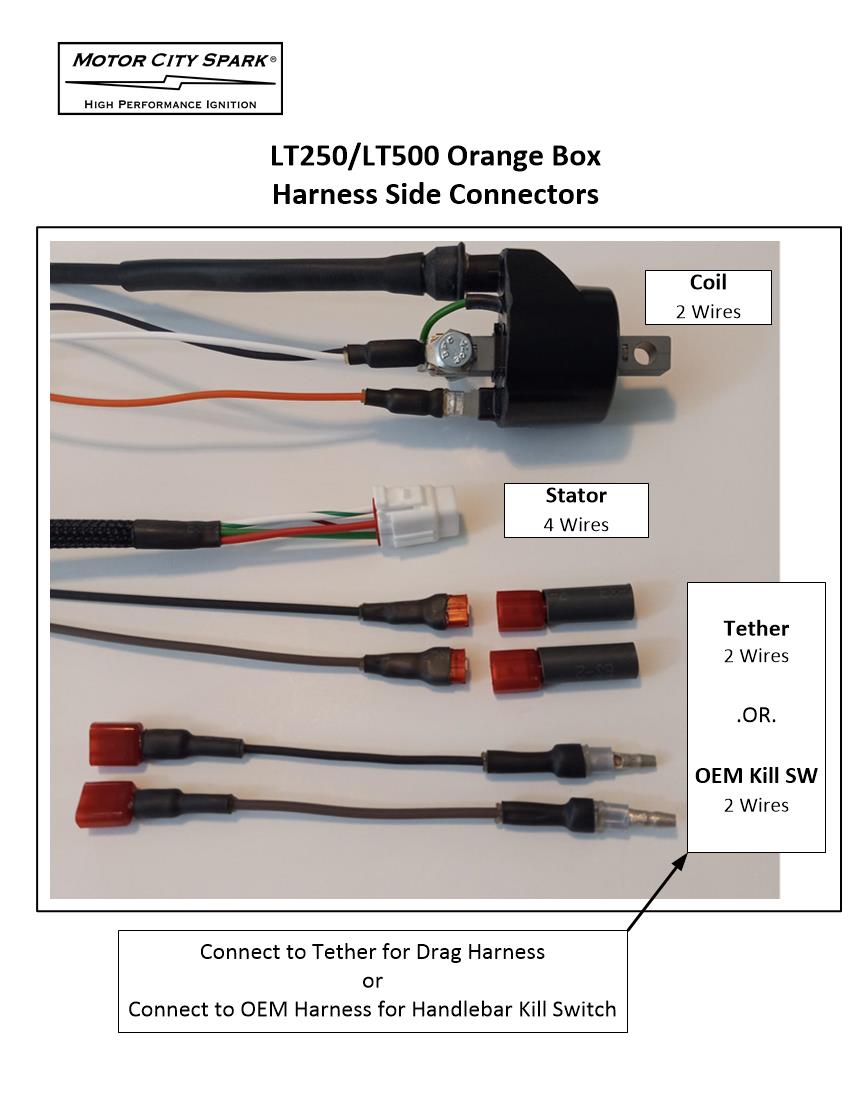

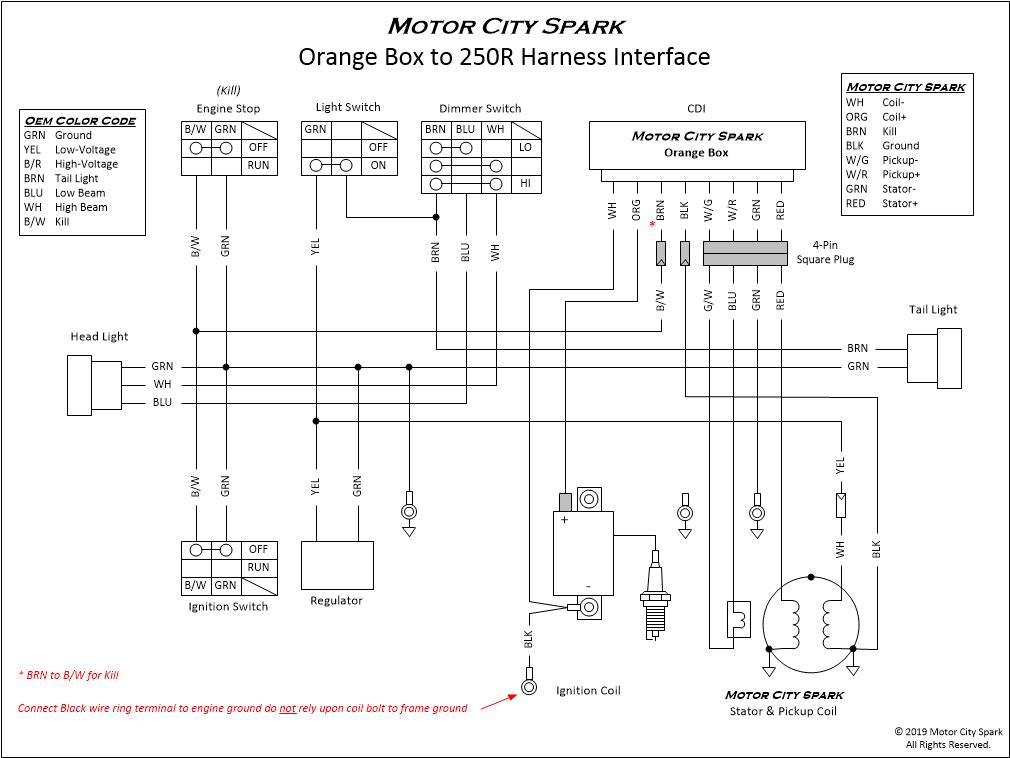

Custom Wiring Harness with:
16 AWG TXL Wire
CDI Automotive Connector

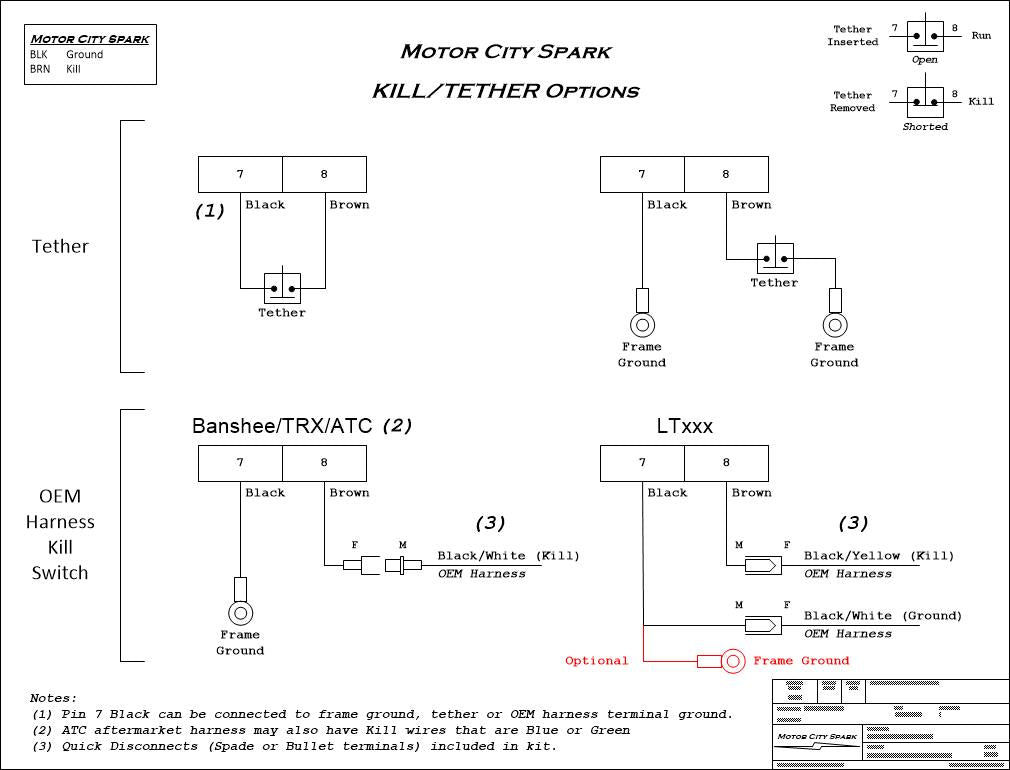

Stator Banshee 4-pin connector, jumpers for Kill Switch or terminals for Tether
Braided Sleeving and Shrink Wrapped
Kill Wire connection to be determined by the purchaser

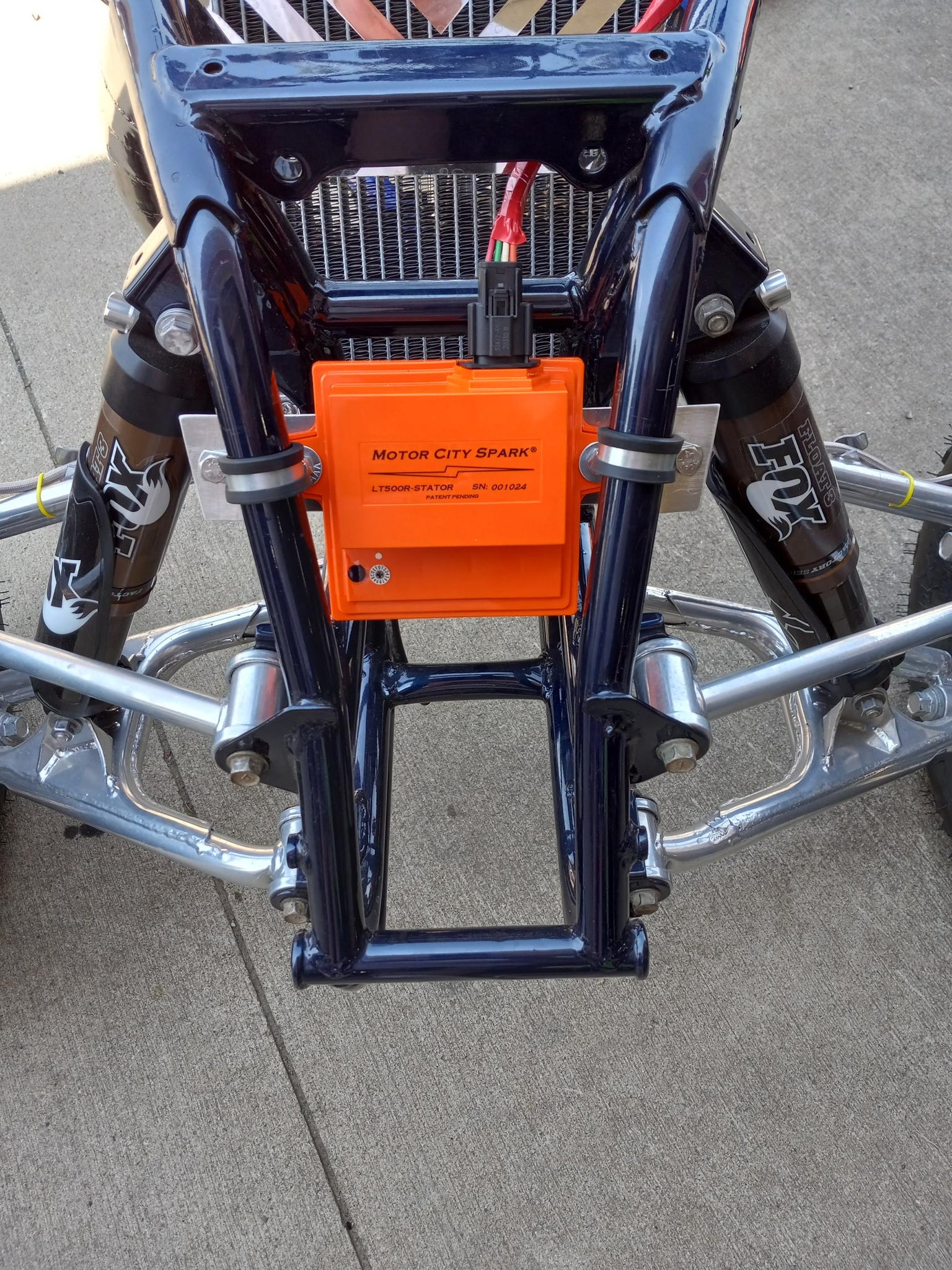

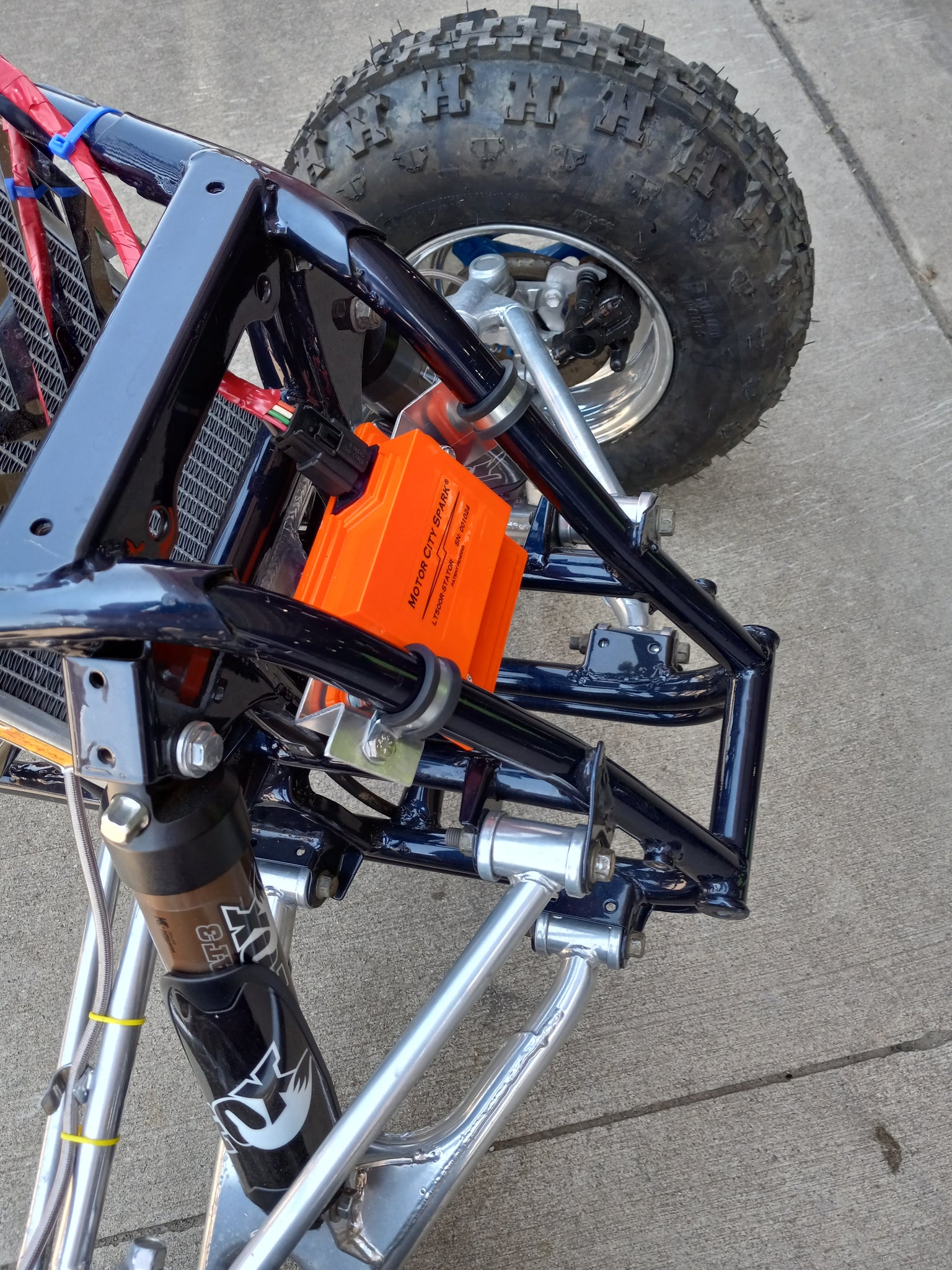

Laser Cut Mounting Bracket with hardware (See front mount JPG below)
Very Simple Installation
1 Year Limited Warranty
Made in USA
