Orange Box Performance Demonstration at 2024 Gilbert PSDA

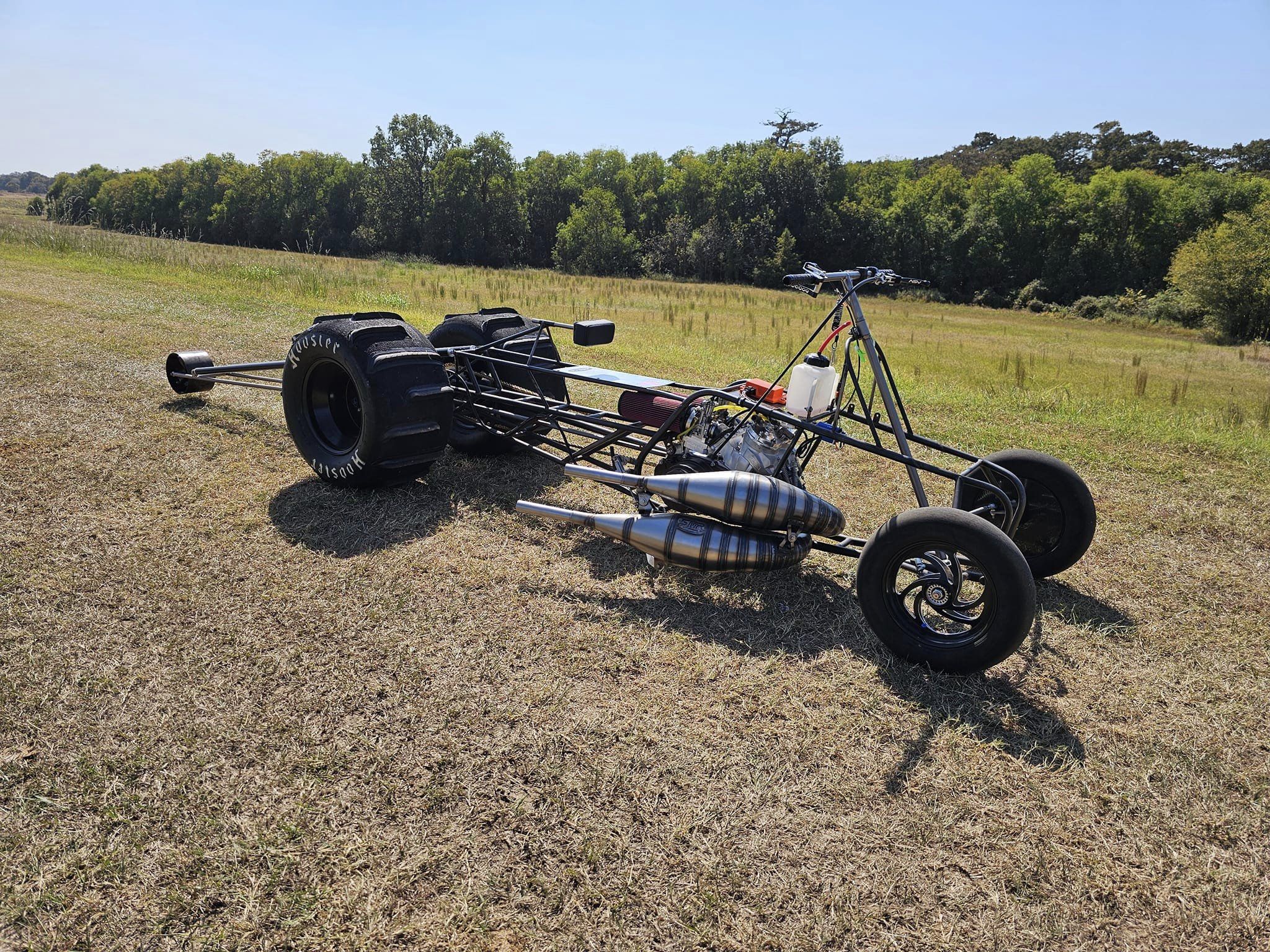

The Orange Box was run on a new Jordan chromoly turbo chassis, K&T high-reving 775cc Banshee drag ported motor and SMR pipes.
To show the performance of the stator-powered Orange Box it was deliberately run with a low-cost $32 Caltric ST108 Stator and $23 Blue eBay Ignition Coil. First pass on the new build with conservative new engine tune was a 3.29 ET which is excellent and
second pass was a 3.21 ET which is one of the fastest for chromoly
chassis.
The stator-powered Orange Box is designed for trails/dunes/mx/xc
racing so the 10K rev limiter was changed to 14K same as the Black/Yellow battery boxes for this drag racing demonstration.

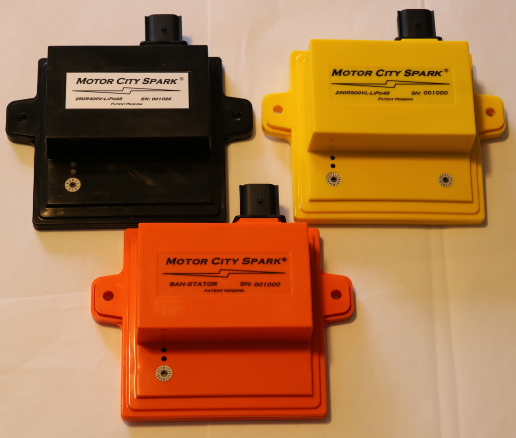

The Orange Box is the highest-performance stator-powered CDI available for Banshee and 250R and makes even the cheapest stator and ignition components "shine."
Motor City Spark Videos on YouTube
New Semiconductor Technology
New high-power semiconductors maximize spark energy while running cool and efficient.
Orange Box - Stator Powered CDI

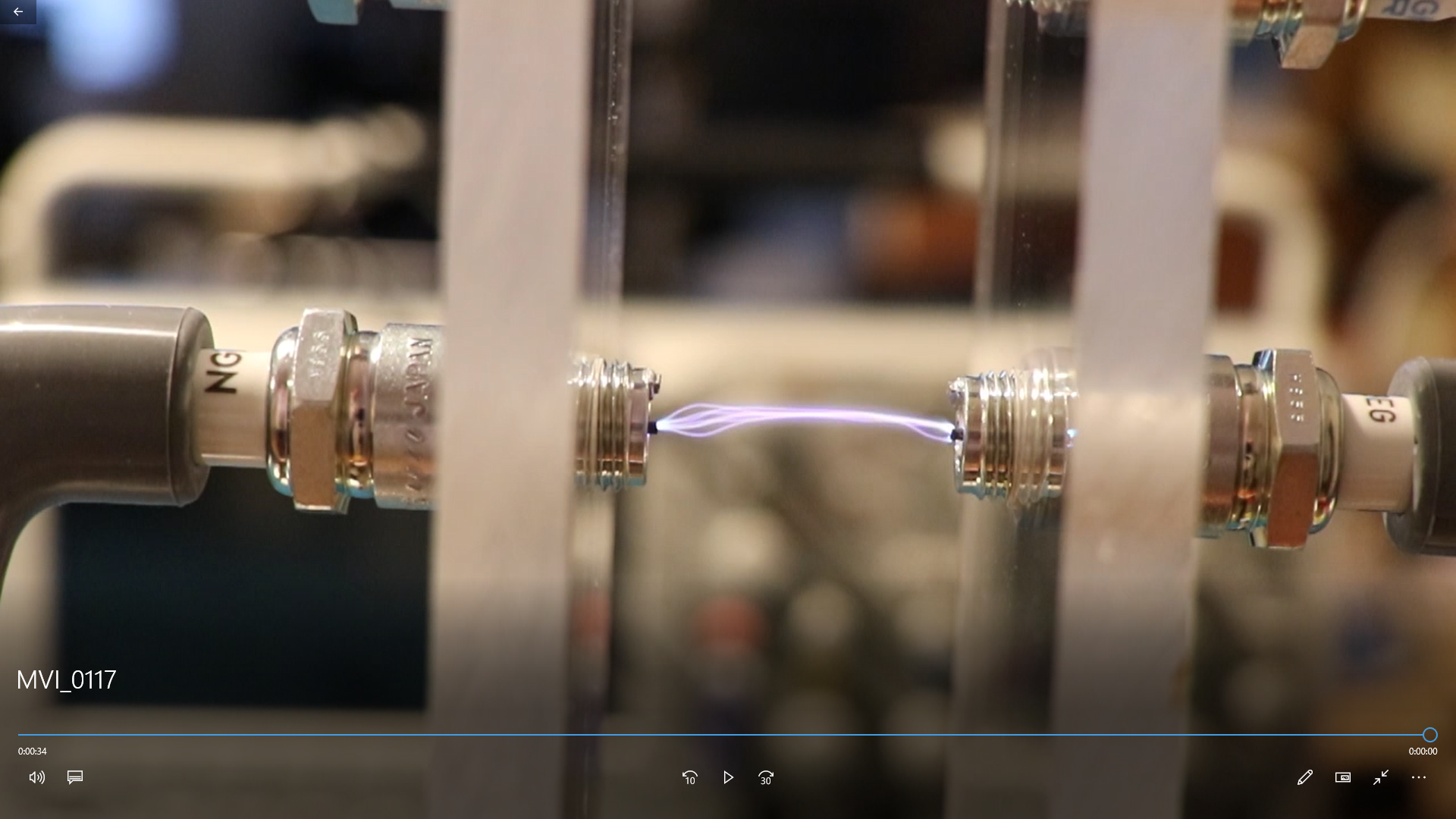

Orange Box - Spark Energy
Orange Box - Wiring
Orange Box - Diagnostics
Next Generation CDI
Battery Powered Smart CDI - No Stator Required!
Every Spark is the Same
No Spark Fade or Misses (0 - 15000 RPM)
Very Simple Installation
10 Pre-Programmed "Record Setting" Spark Curves
Increased Spark Plug Gap (.035" - .050")
350V (60mJ) & 400V (80mJ) CDI for Trails/Dunes
450V (100mJ) & 500V (125mJ) CDI for Racing
Stator CDI Can't Compete at 250-280V (35-40mJ)
Designed for Durability, Reliability and Performance
Minimum Spark RPM - TRX 80, Banshee 90, CR250 100
Made in USA
Motor City Spark powers Team Skittles
Black Box sparks "Skittles" fastest ATV in the Country
BANSHEE 2-STEP CDI "YELLOW BOX"
Yamaha Banshee 500 Volt CDI with Launch Rev Limiter (2-Step)
Includes CDI, CDI Pigtail, Deans Pigtail, Tether, Pickup, Crimp Connectors, Shrink Wrap. Rubber Mounting Washers
125mJ Spark Energy for Maximum-Performance Racing
16 Pre-Programmed Spark Curves
15 RPM Rev Limit Settings
LED Indicators diagnose Pulser, Ignition Coil, Clutch Switch, Battery and CDI
No Stator Required
Requires LiPo4s 14.8V Battery with Dean's Connector
0 - 14000 RPM (Max Rev Limit)
Very Simple Installation
Automotive Grade Connector, Enclosure and Components
1 Year Limited Warranty
Made in USA
Click on "Yellow Box" at Top or Bottom
Motor City Spark and MacDaddy Racing
Custom content
User Comments
"I just finished installing the Motor City Spark 400V CDI today and it's impressive. I can now start my 310R with half a kick, and the powerband feels broader."
"I did a lot of the initial testing with the ignition and now I won't use anything else."
"It's a great ignition starts my 330 with half a kick also."
"Fires my puma up with a 1/2 rotation on my rotostart."
"Bottom line, this is modern ignition technology for our 250Rs. I'm super impressed and will be buying a second CDI for my other 250R that is currently in progress of being built."
“It’s stronger then the cr. I have been dynoing it. More torq and hp then the cr.”
“The ignition is very consistent and has a very noticeable torque increase in the lower rpms. On my test mule 310, the rear end would break loose every time I shifted gears. Never experienced that with the stock or cr ignitions.”
“The new motor city spark cdi boxes are making a very reputable name very quickly. They have been working awesome for us.”
"Bike runs great. Waay better than stock! Ignition is quite an upgrade. Will run one of these from now on."
"The Honda TRX250R ignition is hands down the best ignition made. I have a 310 racing engine that had an HPI ignition and I had nothing but trouble with it; weak spark and was incredibly difficult to start. I installed the Motor City Spark CDI with a Gens Ace 7000mAh battery and now my 310R fires up with half a kick. It's modern ignition technology for my 30 year old quad. I'm going to buy another one for my other 250R!"
"Love the ignitions. I have two. These are the only ignitions I will run from now on."
"I took it for the first few laps just now. I love this ignition. I know a few people are afraid of having a battery and trying to put together electrical components, but this hands down is the most well thought out and well put together ignition package."
"Bike runs amazing, night and day difference. Thanks again."
